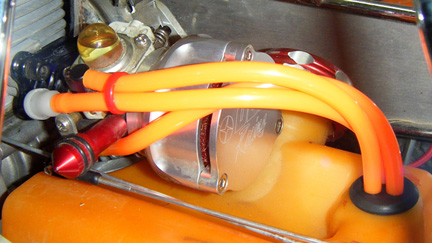

The Snappy Ultimate Fuel Kit eliminates the inferior stock tank grommet and the stock cap vent leaking.

Includes: 3 hole Fuel Tank Grommet, Check Valve Vent, O-Rings cap seal

Cut tubing to desired length
Approximate  14” for fuel pickup, 10” for return, 11” for vent check valve

Insert tubing into grommet
Return and vent tubing should be only a half inch through the
grommet.
The pickup tube should be four to five inches into the grommet

Install fuel pickup filter and vent check valve

Install grommet in tank. It is a very tight fit
(Use some 2cycle oil for lubrication and install with a twisting motion)

Remove old guts from gas cap and plug vent hole
(Plug the vent hole with “SealAll” or tap the hole and install a set screw)

If the old cap gasket is damaged, Install the o-ring in the cap.
(Be sure to remove any burs on billet caps before installing the o-ring)

This kit is intended to be used with gasoline not ethanol.
Ethanol will shorten the life of the check valve.

* When used with FFRC Brass Tubes add a short piece of fuel tubing to the grommet seating area to create a tight fit.

Superior E-Clips For the HPI Baja 5B 5t and 5SC Hinge Pins and Spur Gear

Made of 110,000psi tensile strength e-clips made of C1090 spring steel.
Much stronger than stock and a very solid fit.

50 piece set includes:
  40 eClips the a-arm hinge pins
  10 eClips for the spur or front hubs

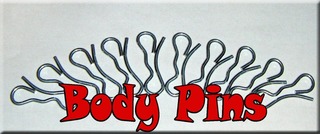

Large Scale Locking Body Pins

Unique locking body pins that can handle the abuse of the track and bashing.

These heavy duty pins are easy to install and stay put.

They work great on the 5B side pods (not recomended for the 5Bfront post since they are difficult to remove). Also great on 1/8th scale RC's.

Replace your worn out or damaged fastener. Two strips included for two repair jobs.

First remove all old velcro strip and adhesive.
Clean with rubbing alcohol and dry the housing before appying new fastner.
Apply one strip to the starter housing.

These special ends lay flatter than any other zip tie or coupling strap.

The curved base gives a better seal on the coupling.

This low profile makes for a cleaner look and reduced pinching of couplings.
They are 11" long and can strap up to 3" in diameter.
3/16"wide with a 50lb tensile strength. UV resistant black.

Snappy Tire Caddy works great on HPI Baja 5B, 5T, 5SC, and most 23mm wheels. Just thread the aluminum T-handle through the center of your wheels. The easiest way to organize your wheels.

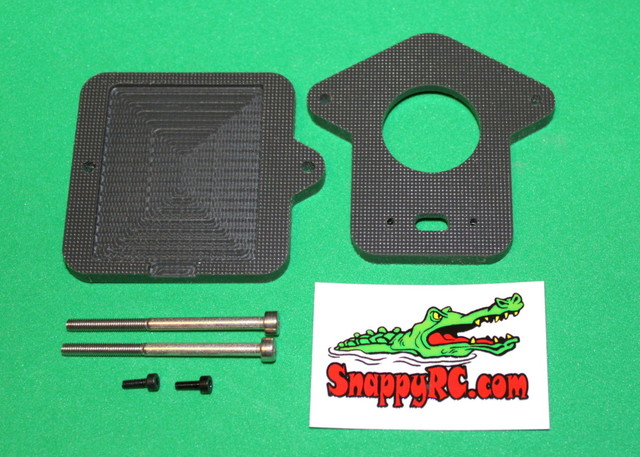

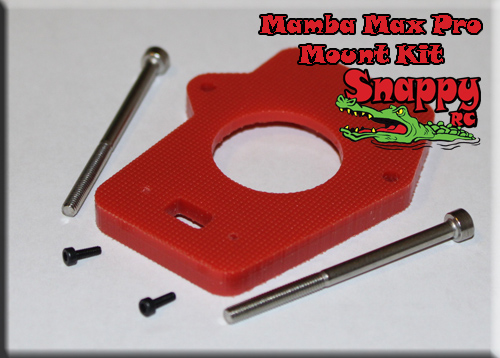

for the Castle Creations Mamba Monster Max™ ESC.

Recessed pocket for holding the ESC in place. Recessed switch to reduce accidental turn on/off.

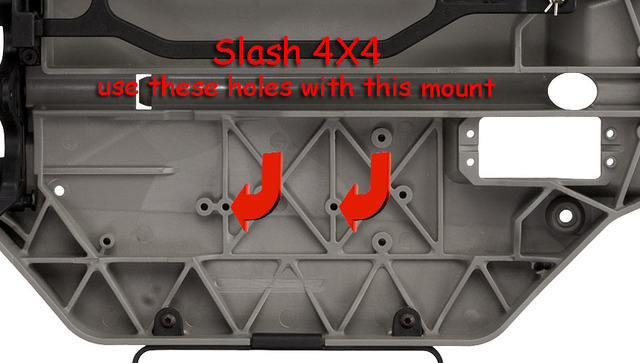

Bolt pattern fits many Traxxas Vehicles that use the EVX, EVX2 and Mamba Monster ESC's

Kit includes two metric hex ESC mounting screws and two metric hex switch mounting screws.

 Click the image to enlarge and see what the sheet looks like

One Giant sticker with a clear background so you can cut it any way you want. Super sticky and very durable. These 106 seperate images are bright and crisp. 33 fantastic sponsor logos. 10 HPIBajaForum.com logos. Measuring 7.5" wide and 11" tall.

New sponsor sheets are in the works... stay tuned

A special thanks to Rob, Chris, all the participating HBF Sponsors for making this possible!
